Infrared solar simulation test chamber

Dual Climatic test Chamber Combined with Rain and IR lamp Test

Walk-in Environmental Testing Chamber is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: computer terminals, vehicle parts.

Technical Data

System Data:

• Irradiation power: 1200 W/m² to 500 W/m² in the target area
• Irradiation distance: Distance IR-lamps to reference area: 600 mm
• Intensity control: 100% – 10%

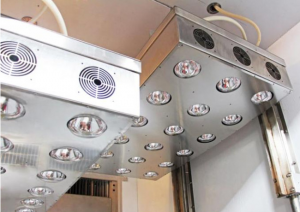

• Lamps: 6 x IR lamp, type BF IRZ 2000W
• Illuminant: 6 x Infrared Lamp 2000W
• Life time illuminant: Average life time: 5000 h

Spectral distribution:

• VIS: 6 % (380 – 780 nm)
• IR-A: 46 % (780 – 1.400 nm)
• IR-B: 44 % (1.400 – 3.000 nm)
• IR-C: 4 % (3.000 – 10.000 nm)

Block Body sensor test method

Block sensor test method + Pyranometer

Test specimen continue monitor with Mobile Dome Network Camera

Data sheet
Technical specification
